4" Tilting Rotary Table With 4 Jaw 100Mm Self Centering Chuck With Backplate-Amz337

ROTARY TABLE Brand New High Quality 4" /100 mm Precision Tilting Rotary Table Features to tilts between 0- 90 Degrees & can be locked at any position. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Center Height in vertical position: 2-5/8" (66 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero

• ROTARY TABLE Brand New High Quality 4" /100 mm Precision Tilting Rotary Table Features to tilts between 0- 90 Degrees & can be locked at any position. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Center Height in vertical position: 2-5/8" (66 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero

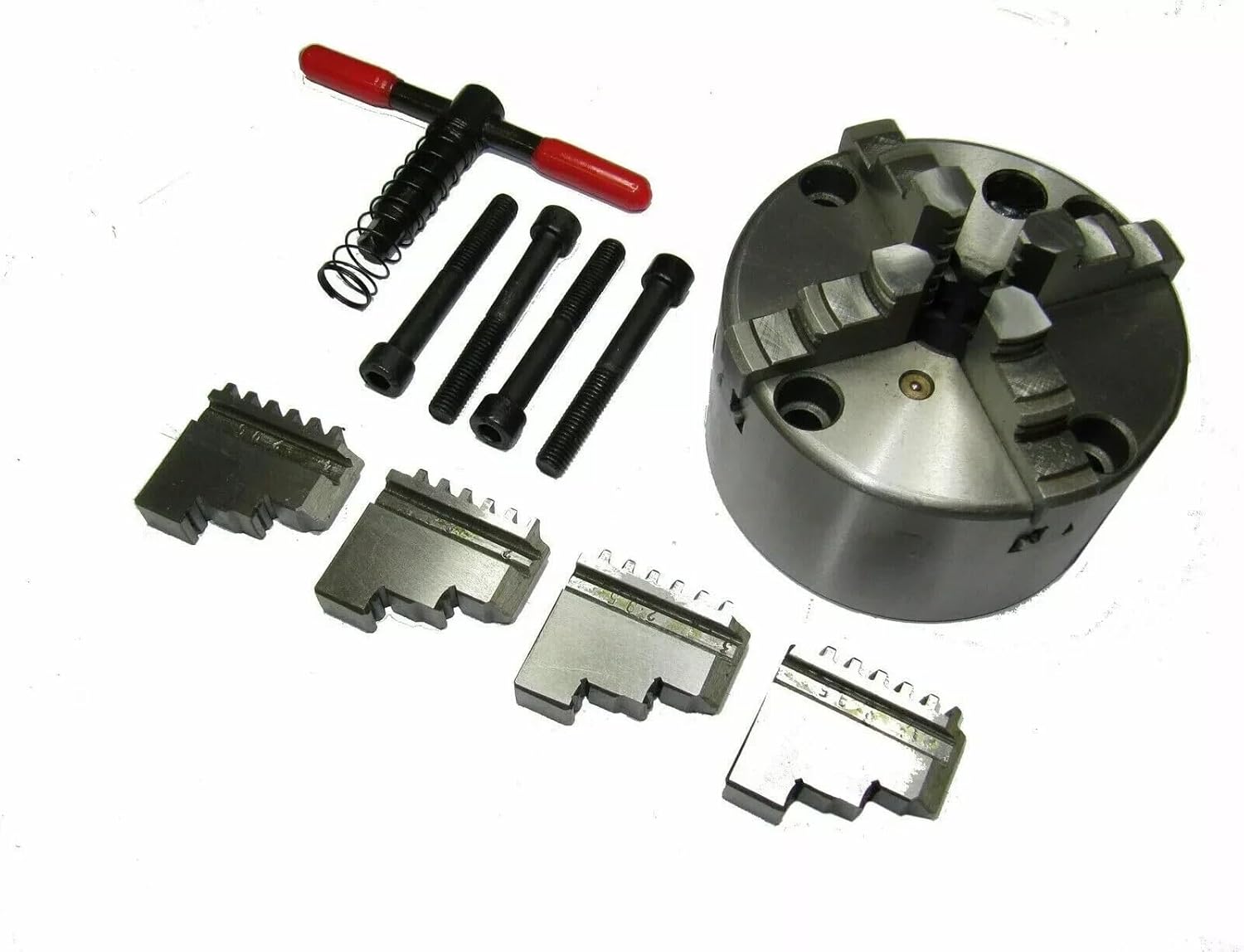

• CHUCK & BACKPLATE SELF CENTERING 4 JAW LATHE CHUCK 100MM DIAMETER INTERNAL / EXTERNAL JAWS ARE INCLUDED 70MM LOCATING RECESS DISTANCE BETWEEN ADJ CENTRES 72MM 83.14 PCD
• OVERALL HEIGHT INCLUDING JAWS 65MM MAX SPEED 3500 THIS CHUCK IS FRONT MOUNT WHICH MAKES FITTING A BACK PLATE MORE STRAIGHT FORWARD A QUALITY CHUCK SUPPILED WITH FIXING BACKPLATE FOR ROTARY TABLE & T-NUTS SET
